Surface equipment / USV

Unmanned Surface Vehicles for Sale

Compare Aqua Helpers surface platforms for survey, bathymetric mapping, sampling and monitoring. Aqua Robot Supply helps international buyers define the instruments, operating conditions and equipment configuration for a project-specific quotation.

Request a Quote
Side-view render of the orange and black Aqua Helpers HUNTER-X catamaran USV.
Surface / 01Aqua Helpers HUNTER-X · Manufacturer render

HUNTER-X: 1,620 mm hull length; 20 kg equipment-only payload. Manufacturer brochure figures; selected configuration to confirm.

Model details

Explore individual models

Open a model dossier for its full specifications, configuration notes and source qualifications.

  • Aqua Helpers HUNTER twin-hull vessels and controllers in a manufacturer render; not a field-deployment photograph.
    Aqua Helpers HUNTER · Manufacturer render. Illustrated instruments and controllers are configuration examples, not a delivery list.

    HUNTER Catamaran USV

    Manufacturer: Aqua Helpers

    Hull length
    1.60 m
    Weight, with battery
    45 kg
    Standard draft
    0.30 m
    View model specifications

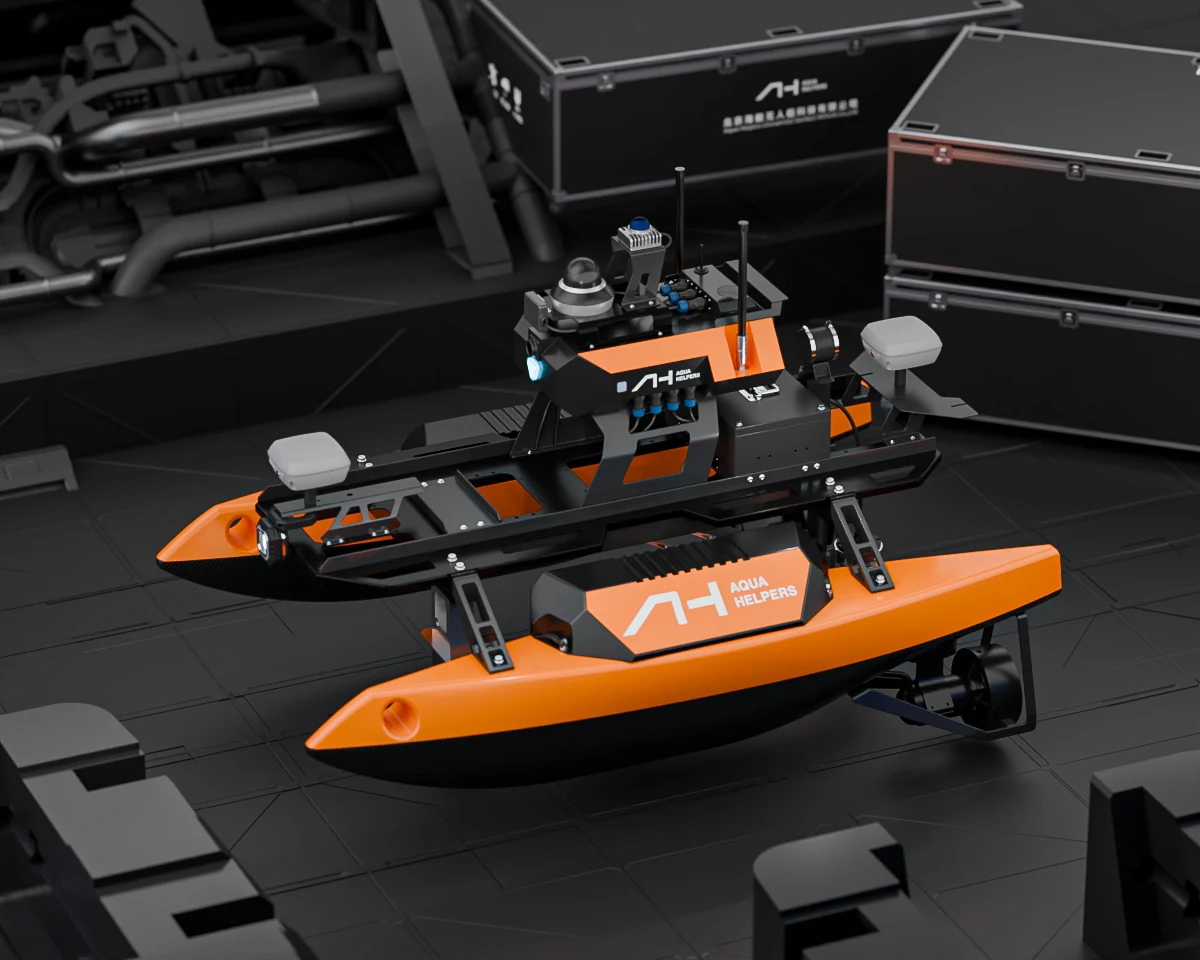

  • Aqua Helpers HUNTER-X catamaran in a manufacturer-rendered workshop setting, not Aqua Robot Supply's actual facility.
    Aqua Helpers HUNTER-X · Manufacturer render. Workshop and accessories are illustrative, not supplier facilities or standard inclusions.

    HUNTER-X Survey USV

    Manufacturer: Aqua Helpers

    Hull length
    1.62 m
    Equipment payload
    20 kg
    Draft
    0.20 m
    View model specifications
  • Manufacturer-rendered yellow Aqua Helpers KOI surface vessel with mission accessories on a white ground.
    Aqua Helpers KOI · Manufacturer render. Pictured instruments are not a standard delivery list.

    KOI Foldable Survey USV

    Manufacturer: Aqua Helpers

    Hull length
    0.99 m
    Weight with battery
    12 kg
    Draft reference
    0.15 m
    View model specifications

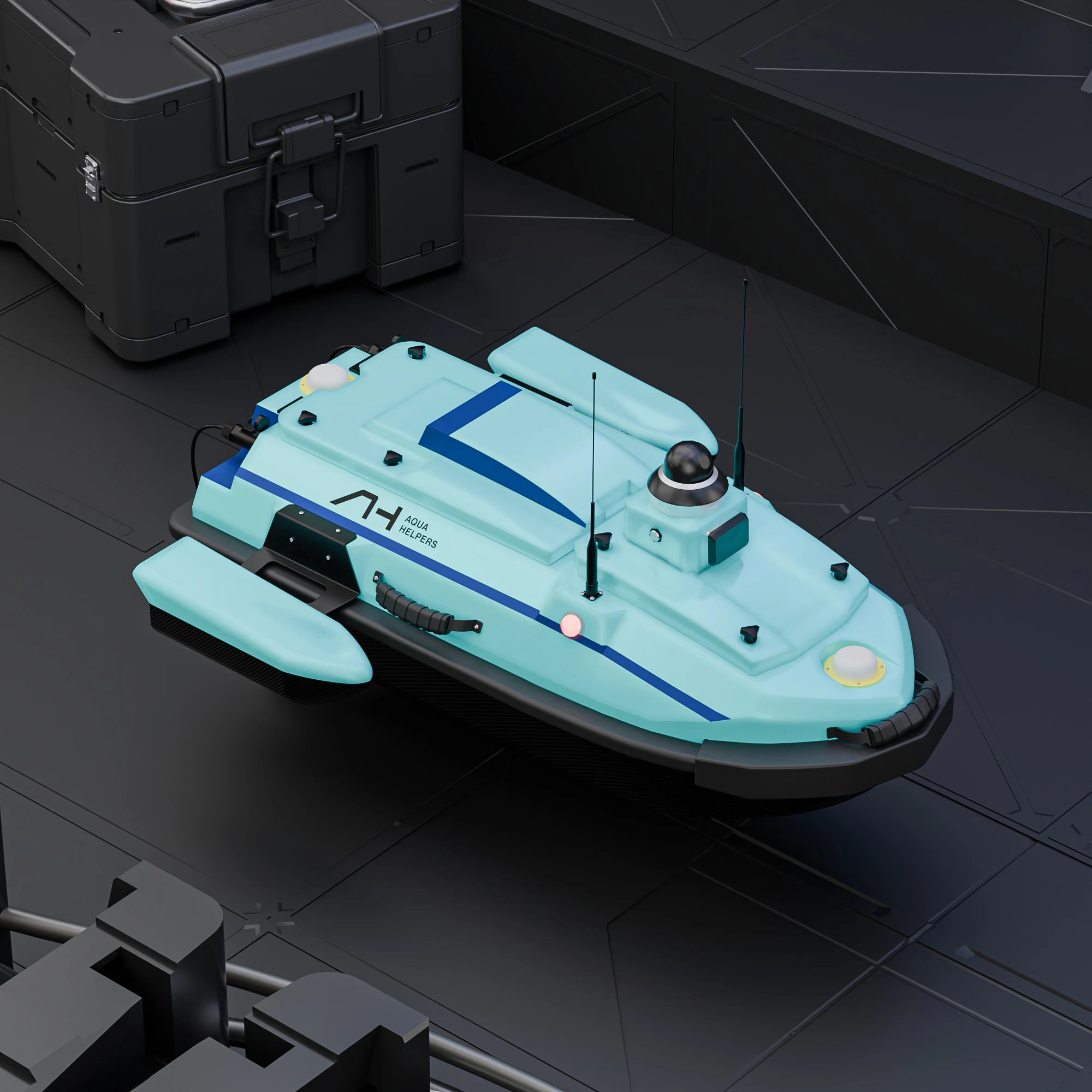

  • Aqua Helpers KOI TURBO in a manufacturer-rendered dark technical setting; not an Aqua Robot Supply facility or deployment.
    Aqua Helpers KOI TURBO · Manufacturer render. Setting and accessories are illustrative, not supplier facilities or standard inclusions.

    KOI TURBO Survey USV

    Manufacturer: Aqua Helpers

    Equipment payload
    20 kg
    Moon pool diameter
    250 mm
    Hull length
    1.22 m
    View model specifications

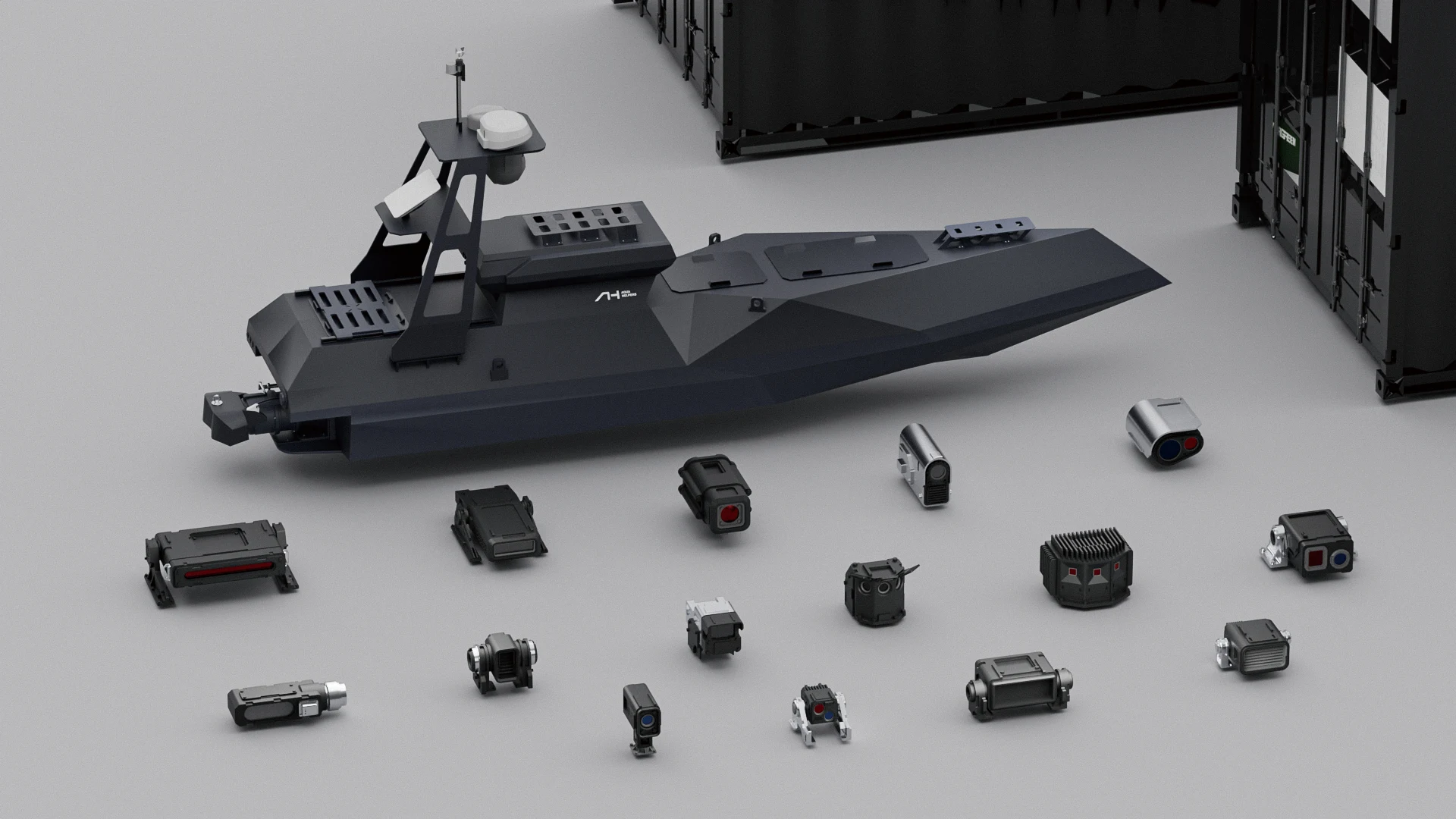

  • Aqua Helpers MANTA angular black vessel in a manufacturer render with separate equipment modules on the ground.
    Aqua Helpers MANTA · Manufacturer render. Separate modules are not confirmed standard equipment; the rendered setting is not our facility.

    MANTA Marine Survey USV

    Manufacturer: Aqua Helpers

    Hull length
    6.6 m / 21.7 ft
    Maximum speed
    40 kn / 46 mph
    Propulsion
    Diesel pump-jet
    View model specifications

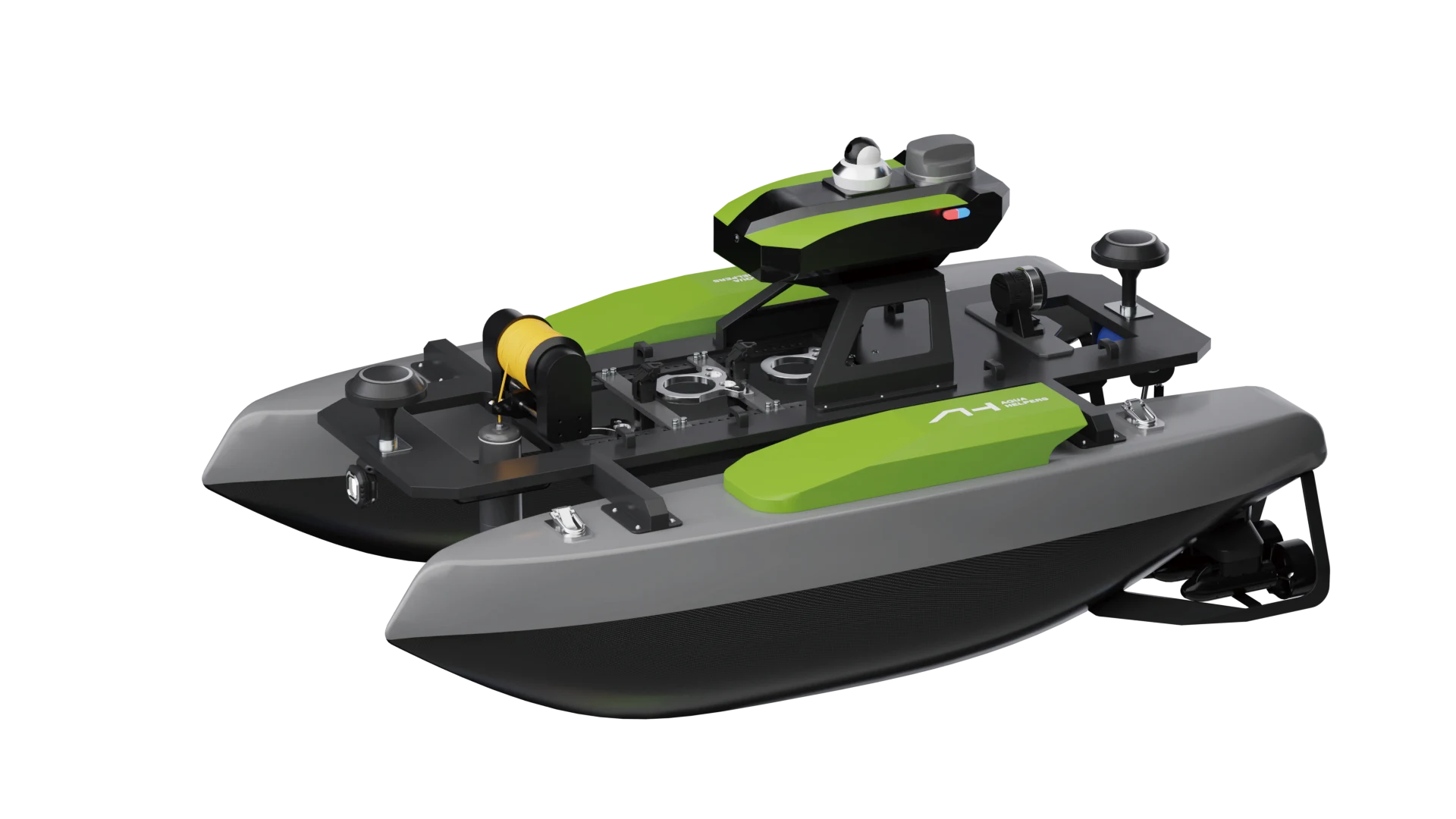

  • Aqua Helpers Orcalink catamaran with green and grey hull panels in an original manufacturer render with extraction artifacts.
    Aqua Helpers Orcalink · Manufacturer render from the uploaded brochure; visible extraction artifacts.

    Orcalink Monitoring USV

    Manufacturer: Aqua Helpers

    Hull length
    2.5 m
    Vehicle incl. battery
    85 ± 1 kg
    Draft
    0.35 m
    View model specifications

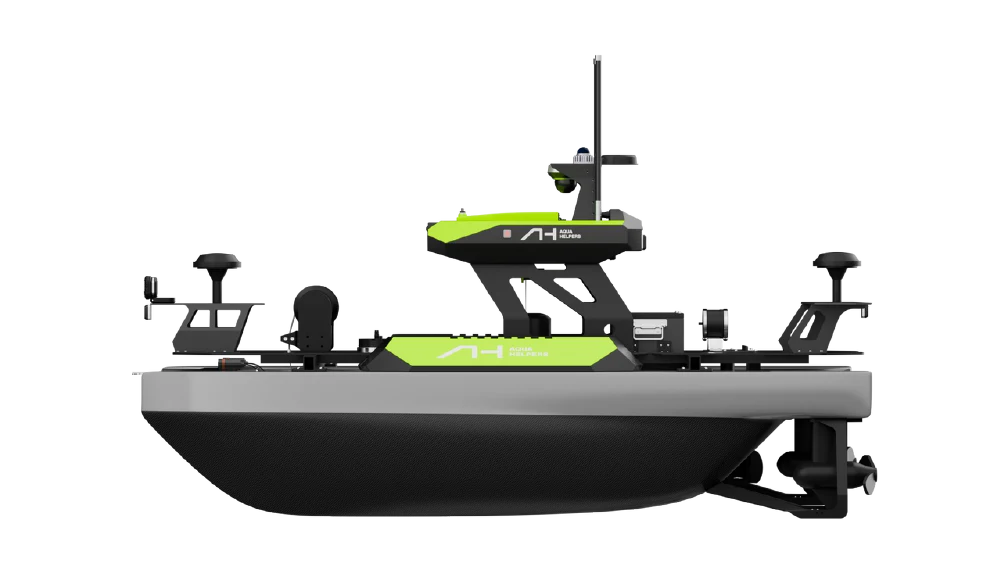

  • Original Aqua Helpers ORCALINK-X manufacturer render with green and grey catamaran hulls and visible brochure-extraction stripes.
    Aqua Helpers ORCALINK-X · Manufacturer render from the uploaded X brochure; extraction artifacts retained.

    ORCALINK-X Catamaran USV

    Manufacturer: Aqua Helpers

    Hull length
    2.5 m
    Equipment payload
    100 kg
    Standard max / 1 kW
    2.5 m/s
    View model specifications

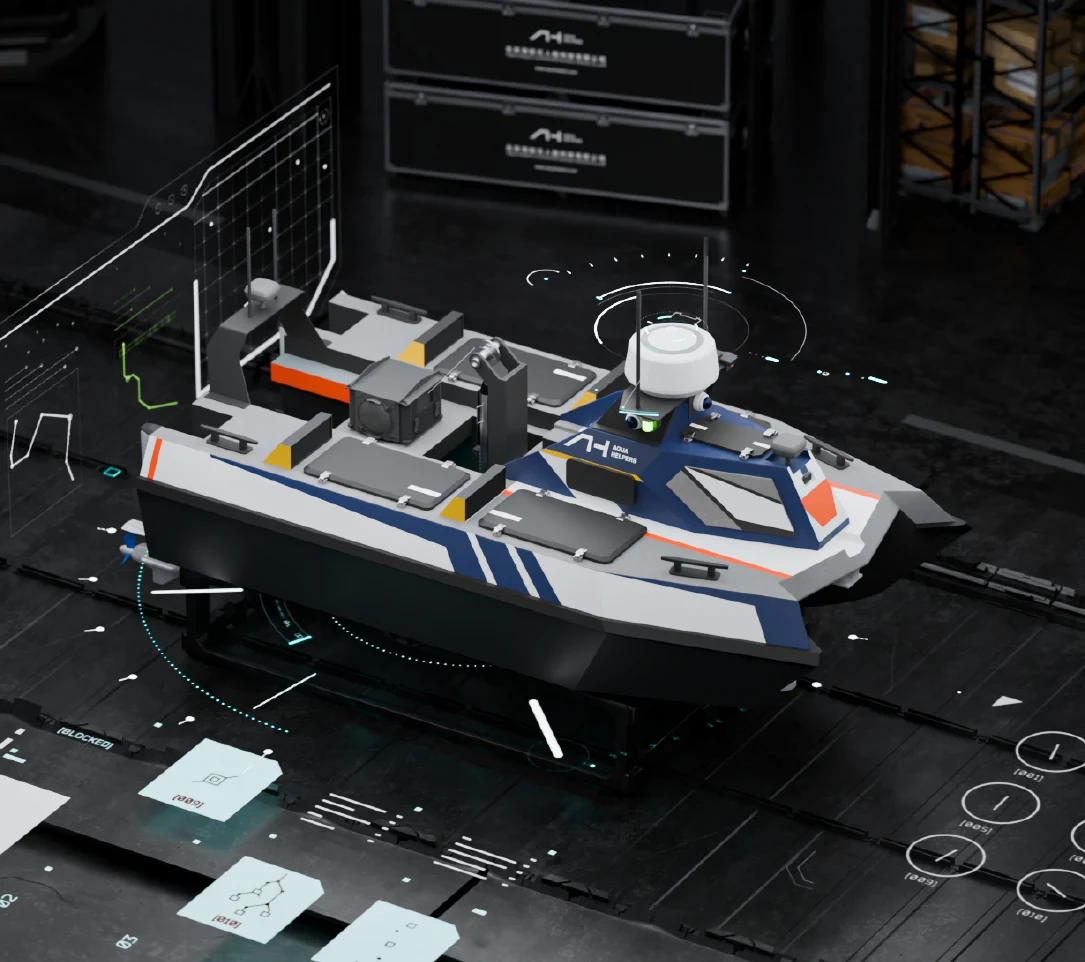

  • Aqua Helpers Seeker twin-hull vessel shown from above in a manufacturer render with technical graphics.
    Aqua Helpers Seeker · Manufacturer render. Illustrated modules and setting do not establish the quoted delivery scope or a supplier facility.

    Seeker Survey USV

    Manufacturer: Aqua Helpers

    Hull length
    4.5 m / 14.8 ft
    Source payload
    300 kg / 661 lb
    Mission mounts
    Dual moon pools
    View model specifications

Manufacturer brochure figures; supply configuration and rating conditions require project-specific confirmation.

Manufacturer reference

Surface platform comparison

Selected Aqua Helpers brochure figures are shown below. These are model references, not an availability list or a guarantee under your operating conditions.

On smaller screens, scroll within the table to see all columns.

Aqua Helpers · Selected model dimensions and load definitions
ModelHull lengthWeight referenceLoad referenceConfiguration note
KOI0.99 m12 kg, with battery10–20 kg, brochure load rangeMonohull / variable trimaran. The source does not resolve endurance and maximum-speed entries; clarify before selection.
KOI TURBO1.22 m11 kg hull weight20 kg equipment; 50 kg battery + equipment250 mm moon pool; pump-jet propulsion. Equipment-only and combined load figures are distinct.
HUNTER1.60 m45 kg, with battery50–60 kg, brochure standard/ultimate loadCatamaran. Brochure lists 8 h cruising capacity, 5 h at 1.5 m/s and 1–2 h at 6 m/s; rating conditions need confirmation.
HUNTER-X1.62 m50 kg with battery; 35 kg without20 kg equipment; 35 kg battery + equipmentA separately named catamaran with tool-free mounting adjustment. Do not substitute HUNTER ratings.
Orcalink2.50 m85 ± 1 kg, with battery100–150 kg, brochure load rangeModular catamaran for monitoring and mapping. The brochure does not assign load-range endpoints to specific configurations.
ORCALINK-X2.50 m230 kg with battery; 170 kg without100 kg equipment; 150 kg battery + equipmentDifferent model from Orcalink. Maximum speed: 2.5 m/s at 1 kW; optional 3 kW propulsion lists 4 m/s.
Seeker4.50 m1,300 kg lightship300 kg payloadDual moon pools and rail mounts. Operational Sea State 3; survival Sea State 4. Satellite communication is optional.
MANTA6.60 m1,800 kg lightweight≥200 kg payloadDiesel pump-jet vessel. Operational Sea State 3 and survival Sea State 4 are different ratings; optional communication must be specified.
Request a Quote

Source: uploaded Aqua Helpers model brochures. Instrument packages, rating conditions and actual supply configuration must be confirmed in the quotation.

  • Weight, payload and combined battery/equipment load are not interchangeable. Compare the actual instrument package, mounting, power and deployment requirements.

Configuration

Survey and monitoring configurations

A vehicle rating alone does not establish whether your instrument can be installed or deliver the required data. Confirm mechanical mounting, power, data interfaces and the complete payload.

Base platform

Navigation, camera, propulsion, battery and ground-control arrangements differ by model and edition. HUNTER and KOI brochures list multiple Standard/Pro configurations; the quotation must identify the actual included package.

Optional mission equipment

  • HUNTER: single-beam, multibeam or side-scan sonar, RTK, sampling and water-quality instruments are listed as options.
  • KOI: sampling systems, single-beam/side-scan sonar, monitoring instruments and removable floats are listed as options.
  • Orcalink: monitoring, sampling, ADCP, sonar and stratified-sampling configurations are manufacturer-listed choices.

Optional instruments are not automatically included. KOI endurance, HUNTER rating conditions and model-specific payload definitions require clarification before ordering.

Aqua Helpers KOI USV in a white-ground manufacturer render.
Surface / 02Aqua Helpers KOI · Manufacturer render; pictured instruments do not establish standard inclusion.

Information to share

  • Survey or sampling task, required measurements and data format.
  • Instrument model, dimensions, weight, power and interface details.
  • Water conditions, working area, communications and launch/recovery arrangements.
Explore application requirements

Purchasing scope

Confirm the quotation scope

Review the vehicle, control and power equipment, instruments, accessories and deployment arrangements in the quotation. Ask for applicable product documentation and confirm delivery, packaging, warranty and support terms for the order. These commitments are not assumed from a brochure.

Request a project quotation

Project quotation

Discuss your equipment requirements

Discuss your task, site conditions and preferred equipment for a project-specific quotation.
