Aqua Helpers / HUNTER

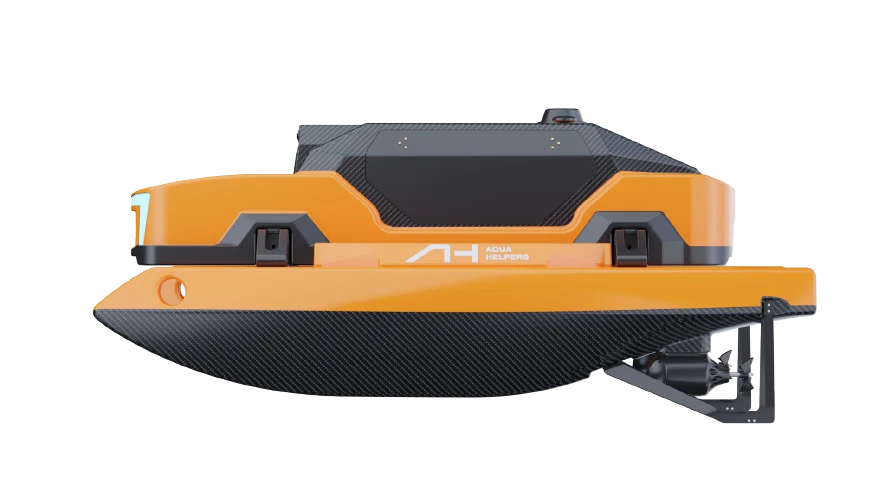

HUNTER Catamaran USV
Aqua Helpers' 1.6 m catamaran supports survey, sampling and monitoring configurations using optional instruments. Aqua Robot Supply coordinates equipment selection and project quotations with the manufacturer.
- Manufacturer:
- Aqua Helpers
- Equipment supplier:
- Aqua Robot Supply
- Hull length
- 1.60 m
- Weight, with battery
- 45 kg
- Standard draft
- 0.30 m
Manufacturer brochure references. Configuration, instruments and rating conditions are confirmed for your quotation; no immediate availability is implied.
Manufacturer reference
Model specifications
Read metric manufacturer figures alongside approximate imperial conversions. Published ratings do not establish performance under every site or payload condition.
Rating and load qualifications
- 8 h cruising capacity, 5 h at working speed and 1–2 h at maximum speed are distinct brochure entries. Conditions are not fully specified.
- The 50–60 kg load wording does not establish equipment-only capacity. HUNTER-X's 20 kg / 35 kg definitions must not be transferred to HUNTER.
- Values may change with product modifications. Confirm instruments, mounting, power and the supplied configuration before ordering.
Technical source: Uploaded Aqua Helpers HUNTER Series English brochure (猎手宣传版_EN).
On small screens, values wrap within the table. Manufacturer metric values remain authoritative.
| Parameter | Brochure value and definition |
|---|---|
| Vessel and hull material | Catamaran; nano carbon-fiber composite. |
| Hull dimensions | 1.60 × 1.20 × 0.60 m (L × W × H); approximately 5.25 × 3.94 × 1.97 ft. |
| Hull weight | 45 kg including battery (approximately 99 lb). Vehicle weight, not equipment payload. |
| Standard / ultimate load | 50–60 kg (approximately 110–132 lb), as worded in the brochure. Battery inclusion and the configuration for each endpoint are not defined; confirm before comparing payloads. |
| Draft | 30 cm standard (approximately 12 in). The source's additional 'Extreme draught Within safe limits' wording gives no numerical upper limit. |
| Operating modes / navigation | Fully automatic or manual; intelligent navigation equipped. |
| Camera | High-definition camera equipped. Camera model and recording package to confirm. |
| Propulsion | Brushless DC electric propulsion with waterproof cover and anti-tangling design. Manufacturer description, not a guarantee against all entanglement. |
| Cruising capacity | 8 h, separately listed. The brochure does not state the speed, payload or conditions for this figure. |
| Working speed / endurance | 1.5 m/s (approximately 2.9 kn); 5 h endurance. Payload, battery and water conditions need confirmation. |
| Maximum speed / endurance | 6 m/s (approximately 11.7 kn); 1–2 h endurance. Do not combine maximum speed with the separately stated 8 h capacity. |
| Communication | 4G and digital transmission. Coverage and selected equipment affect the usable link. |
| Data / image transmission | 5 km each (approximately 3.1 mi), brochure reference. Test conditions and deployment link performance to confirm. |
| Wind / wave reference | Wind resistance level 5; 1.5 m wave height (approximately 4.9 ft). Source rating only; operating conditions and payload need manufacturer confirmation. |
| Waterproofing wording | 'IP65 drizzle; IP67 buoy', as supplied. Do not treat this wording as a whole-system certification or an unlimited immersion rating. |
| Battery | High-polymerization lithium battery. Capacity, charger and shipping requirements to confirm. |
Task and integration scope
Applications and configuration
Application scope
Survey and bathymetric mapping
Single-beam, multibeam and side-scan sonar are listed options. Specify the sonar, positioning and data requirements before selecting the package.
Sampling and environmental monitoring
The brochure lists an automated 10-water harvesting system and water-quality instruments. Sampling method, instrument scope and mounting require confirmation.
Selection limits
Review another platform if required load, draft, deployment access or operating conditions cannot be confirmed for HUNTER. This is a surface vessel, not an underwater inspection vehicle.
Documented vehicle equipment
Vehicle functions
Automatic/manual operation, intelligent navigation and an HD camera are listed as equipped.
Standard / Pro packages
The brochure distinguishes H16 and H30 ground stations and different control-system packages. Confirm which version is quoted.
Optional equipment and integration
Survey equipment
RTK, single-beam, multibeam and side-scan sonar.
Sampling and monitoring
10-water harvesting system, COD detector, online water-quality monitor, oil-content analyzer, phosphorus/ammonia module.
Control and observation
Surveillance dome, laser radar, H16/H30 ground stations and cloud-system options; specify each item.
Interfaces to confirm
No universal third-party sensor compatibility is established. Provide instrument dimensions, mass, mounting, power and data-interface requirements.
A brochure equipment reference is not a final delivery list. Specify each instrument, controller and accessory in the quotation.
Procurement record
Quotation and compliance
Aqua Robot Supply coordinates the selected configuration and order terms with the manufacturer. The following purchasing terms have not yet been confirmed for this model.
- MOQ / availability
- Not confirmed. Request model-specific order quantity and availability.
- Lead time
- Not confirmed. Agree after configuration selection.
- Packaging / shipment
- Not confirmed. Discuss vehicle, battery and instrument shipment requirements.
- Sample / evaluation unit
- Availability and terms not confirmed.
- Warranty / support
- Scope and terms not confirmed; request them in the quotation.
Model-applicable certificates
No model-applicable certificate number or validity record has been supplied. Request documents for your destination market; no certification or safety approval is claimed here.
