Aqua Helpers / KOI

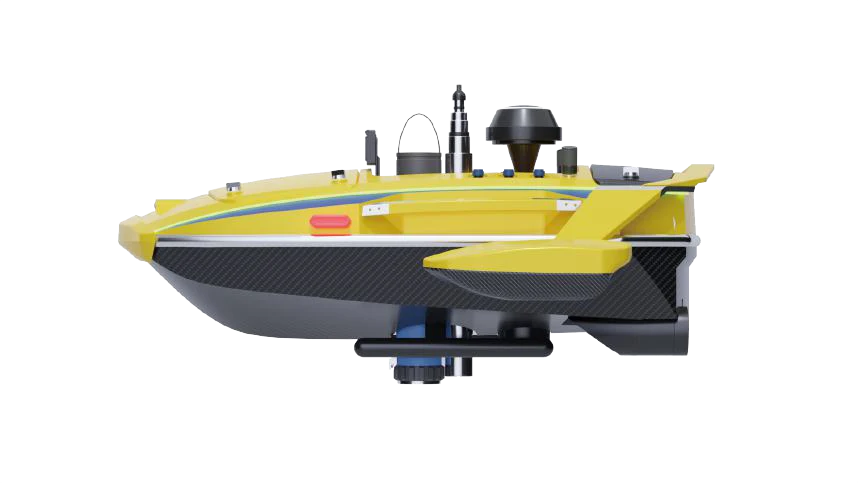

KOI Foldable Survey USV
Aqua Helpers' compact 0.99 m KOI surface platform offers AH Standard, Pro and Max configurations with optional survey, sampling and monitoring instruments. Aqua Robot Supply coordinates configuration selection and a project-specific quotation.
- Manufacturer:
- Aqua Helpers
- Equipment supplier:
- Aqua Robot Supply
- Hull length
- 0.99 m
- Weight with battery
- 12 kg
- Draft reference
- 0.15 m
Manufacturer brochure references. Configuration, instruments and rating conditions are confirmed for your quotation; no immediate availability is implied.
Manufacturer reference
Model specifications
Read metric manufacturer figures alongside approximate imperial conversions. Published ratings do not establish performance under every site or payload condition.
Rating and load qualifications
- 12 kg includes the battery. The 10–20 kg standard/ultimate load entry does not define battery inclusion or net instrument capacity.
- 3 h cruising capacity and the 5 h wording in both speed fields remain separate source entries. Neither a unified endurance figure nor maximum speed can be confirmed.
- AH Standard, Pro and Max are configurations of KOI, not separate models. Do not substitute KOI TURBO's dimensions, load or endurance.
Technical source: Uploaded Aqua Helpers KOI Series English brochure (锦鲤宣传版_EN).
On small screens, values wrap within the table. Manufacturer metric values remain authoritative.
| Parameter | Brochure value and definition |
|---|---|
| Vessel type | Monohull; variable trimaran. Removable floats are listed among optional equipment; confirm the quoted arrangement. |
| Hull dimensions | 990 × 470 × 330 mm (L × W × H); approximately 3.25 × 1.54 × 1.08 ft. |
| Hull material | Nano carbon-fiber composite. |
| Vehicle weight | 12 kg including battery (approximately 26 lb). Vehicle mass, not equipment payload. |
| Standard / ultimate load | 10–20 kg (approximately 22–44 lb), as printed. The battery basis and equipment-only allowance are not defined. Do not compare directly with KOI TURBO's equipment payload. |
| Draft | 15 cm (approximately 6 in), described as a safe range. Confirm clearance for the actual load and operating site. |
| Cruising capacity | 3 h, brochure entry. Conflicts with the 5 h endurance wording in the speed fields; operating conditions are unspecified. |
| Working speed | 1.5 m/s (approximately 2.9 kn); the same field also prints 'Endurance 5 hours'. The endurance reference is retained, not reconciled into a single rating. |
| Maximum speed | No usable speed value; the brochure field reads 'Endurance 5 hours'. Maximum speed requires clarification. The endurance wording is not a speed. |
| Navigation / operating modes | Intelligent navigation equipped; fully automatic or manual. |
| Camera | HD camera equipped. Exact camera and recording scope to confirm. |
| Hull waterproof rating | IP65, manufacturer reference. Not a supplied certification record or an underwater operating rating. |
| Drive mode | Brochure wording: 'Pump spray, waterproof grass'. Exact propulsion and anti-weed specification to confirm; no fouling guarantee is established. |
| Communication | 4G and digital transmission. Supplied hardware and local network coverage to confirm. |
| Data transmission range | 5 km (approximately 3.1 mi), brochure reference. Link conditions and configuration require confirmation. |
| Image transmission range | 3 km (approximately 1.9 mi), brochure reference. Not the same as the data-transmission rating. |
| Wind / wave reference | Class 3 wind; 1 m wave (approximately 3.3 ft), as printed. Manufacturer reference only; no universal operating assurance or test conditions supplied. |
| Battery | Brochure describes a high-polymer lithium battery. Capacity, charger and shipment scope to confirm. |
Task and integration scope
Applications and configuration
Application scope
Survey instruments
Optional single-beam, side-scan sonar and Doppler flow instruments are listed. Instrument mass, mounts and measurement requirements determine configuration.
Sampling and monitoring
Optional automatic sampling and water-quality instruments are listed. Confirm sampling method, site conditions and instrument package.
Selection limits
Clarify the payload definition, endurance and maximum-speed fields before selecting KOI for a mission that depends on those limits. Consider another platform if the confirmed load, clearance or link requirements cannot be met.
Documented vehicle equipment
Vehicle functions
Intelligent navigation, automatic/manual operation and an HD camera are listed as equipped; the brochure describes a collapsible, modular platform.
AH Standard
H12 ground control, Center Control System and First View. No computing system is listed.
AH Pro
H16 ground control, Center Control System, Aqua Helpers Intelligent Computing system, First View and millimeter-wave radar.
AH Max
H30 ground control, Center Control System, Aqua Helpers Intelligent Computing system, First View and LIDAR.
Optional equipment and integration
Survey and positioning
RTK, side-scan sonar, single-beam equipment and Doppler Flow Velocimeter.
Water instruments
Fully Automatic 2 and 6 Water Harvesting Systems, full-spectrum COD detector and online water-quality monitor.
Observation and signalling
Surveillance dome, surveillance-ball mounting bracket, shouting device and red/blue warning light.
Platform and control
Removable float, H16/H30 ground control and Aqua Helpers Cloud System. Confirm the package against the selected AH tier.
Interfaces to confirm
Supply instrument dimensions, mass, mounting, power and data interfaces. A listed optional instrument category does not establish compatibility with every third-party model; actual instrument configuration may change with product modification.
A brochure equipment reference is not a final delivery list. Specify each instrument, controller and accessory in the quotation.
Procurement record
Quotation and compliance
Aqua Robot Supply coordinates the selected configuration and order terms with the manufacturer. The following purchasing terms have not yet been confirmed for this model.
- MOQ / availability
- Not confirmed; request model-specific quantity and availability.
- Lead time
- Not confirmed; agree after configuration selection.
- Packaging / shipment
- Not confirmed; specify batteries, controller, instruments and shipping scope.
- Sample / evaluation unit
- Availability and terms not confirmed.
- Warranty / support
- Scope and terms not confirmed; request them with the quotation.
Model-applicable certificates
No model-applicable certificate number or validity record has been supplied. Request documents for the destination market; brochure IP65 is not certification proof.
