ORCALINK-X Catamaran USV
Aqua Helpers' 2.5 m catamaran is presented for survey and scanning with tool-free mounting adjustment and a large instrument cabin. Aqua Robot Supply coordinates the project quotation, keeping equipment payload and optional propulsion separate.
- Manufacturer:
- Aqua Helpers
- Equipment supplier:
- Aqua Robot Supply
- Hull length
- 2.5 m
- Equipment payload
- 100 kg
- Standard max / 1 kW
- 2.5 m/s
Manufacturer illustration, not a supplier project or a confirmed standard shipment. Extraction stripes are present; original higher-resolution artwork is needed. Visible instruments do not establish inclusions.
Manufacturer brochure references. Configuration, instruments and rating conditions are confirmed for your quotation; no immediate availability is implied.
Manufacturer reference
Model specifications
Read metric manufacturer figures alongside approximate imperial conversions. Published ratings do not establish performance under every site or payload condition.
ORCALINK-X · Overall dimensional envelope
- Length
- 2500 mm
- Width
- 1400 mm
- Height
- 1650 mm
Rating and load qualifications
- 100 kg is equipment-only payload; 150 kg is battery plus equipment. The separate 230/170 kg values are vehicle weight with/without battery.
- 2.5 m/s at 1 kW is standard; 4 m/s at 3 kW is optional. Neither maximum speed is promised simultaneously with 8–9 h endurance.
- ORCALINK-X has its own IP65, 0.4 m draft and 2 km link records. Orcalink's ratings and equipment-options list are not transferred to this model.
Technical source: Uploaded Aqua Helpers ORCALINK-X English brochure (灵鲸-X宣传版_EN), product specification table and mounting/propulsion descriptions.
On small screens, values wrap within the table. Manufacturer metric values remain authoritative.
| Parameter | Brochure value and definition |
|---|---|
| Hull dimensions | 2500 × 1400 × 1650 mm (L × W × H); approximately 8.20 × 4.59 × 5.41 ft. |
| Vessel / hull material | Catamaran; full nano carbon-fiber composite material. |
| Vehicle weight, with / without battery | 230 kg with battery / 170 kg without battery (approximately 507 lb / 375 lb). Configuration notesVehicle mass is not equipment payload or combined battery-plus-equipment load. |
| Equipment-only payload | 100 kg (approximately 220 lb). Configuration notesEquipment capacity, separate from the 150 kg combined load record. |
| Battery + equipment load | 150 kg (approximately 331 lb). Configuration notesNot 150 kg of net equipment capacity; do not calculate another payload from the two vehicle weights. |
| Maximum draft | 0.4 m (approximately 15.7 in). Configuration notesConfirm loading, clearance and launch conditions for the selected configuration. |
| Endurance | 8–9 h, manufacturer brochure reference. Configuration notesBattery, propulsion, speed, payload and test conditions remain to confirm. Not a maximum-speed endurance guarantee. |
| Intelligent navigation | Equipped. Configuration notesExact navigation hardware, software and positioning performance to confirm. |
| Operating modes | Fully automatic / Manual. |
| HD camera | Equipped. Configuration notesCamera model and recording/streaming configuration to confirm. |
| Waterproof reference | IP65. Configuration notesManufacturer table record, not verified certification or an underwater operating rating. Do not substitute Orcalink's buoy IP67. |
| Drive system | DC brushless electric thrusters, waterproof housing, anti-entanglement design. Configuration notesManufacturer design description; no universal fouling or debris guarantee. |
| Standard maximum speed / power | 2.5 m/s at 1 kW (approximately 4.9 kn / 5.6 mph). Configuration notesStandard propulsion record, not the optional 3 kW configuration. |
| Optional maximum speed / power | 4 m/s at 3 kW (approximately 7.8 kn / 8.9 mph). Configuration notesHigher-power propulsion is optional. Confirm the final drive and battery specification; not standard equipment. |
| Cruising speed | 1.5 m/s (approximately 2.9 kn / 3.4 mph). Configuration notesSeparate from the maximum-speed and endurance records. |
| Communication | 4G data and image transmission. Configuration notesNetwork coverage and quoted communication equipment determine actual operation. |
| Data transmission range | 2 km (approximately 1.2 mi), brochure reference. Configuration notesSite, antenna, network and link conditions to confirm. |
| Image transmission range | 2 km (approximately 1.2 mi), brochure reference. Configuration notesNot a guaranteed range at every site or with any video package. |
| Wind / wave reference | ≤ Beaufort 4; 1 m waves (approximately 3.3 ft). Configuration notesManufacturer reference; not an all-condition task guarantee or Sea State 4. |
| Battery type | High-density polymer lithium battery. Configuration notesCapacity, charger, spare batteries and shipment documentation to confirm. |
Task and integration scope
Applications and configuration

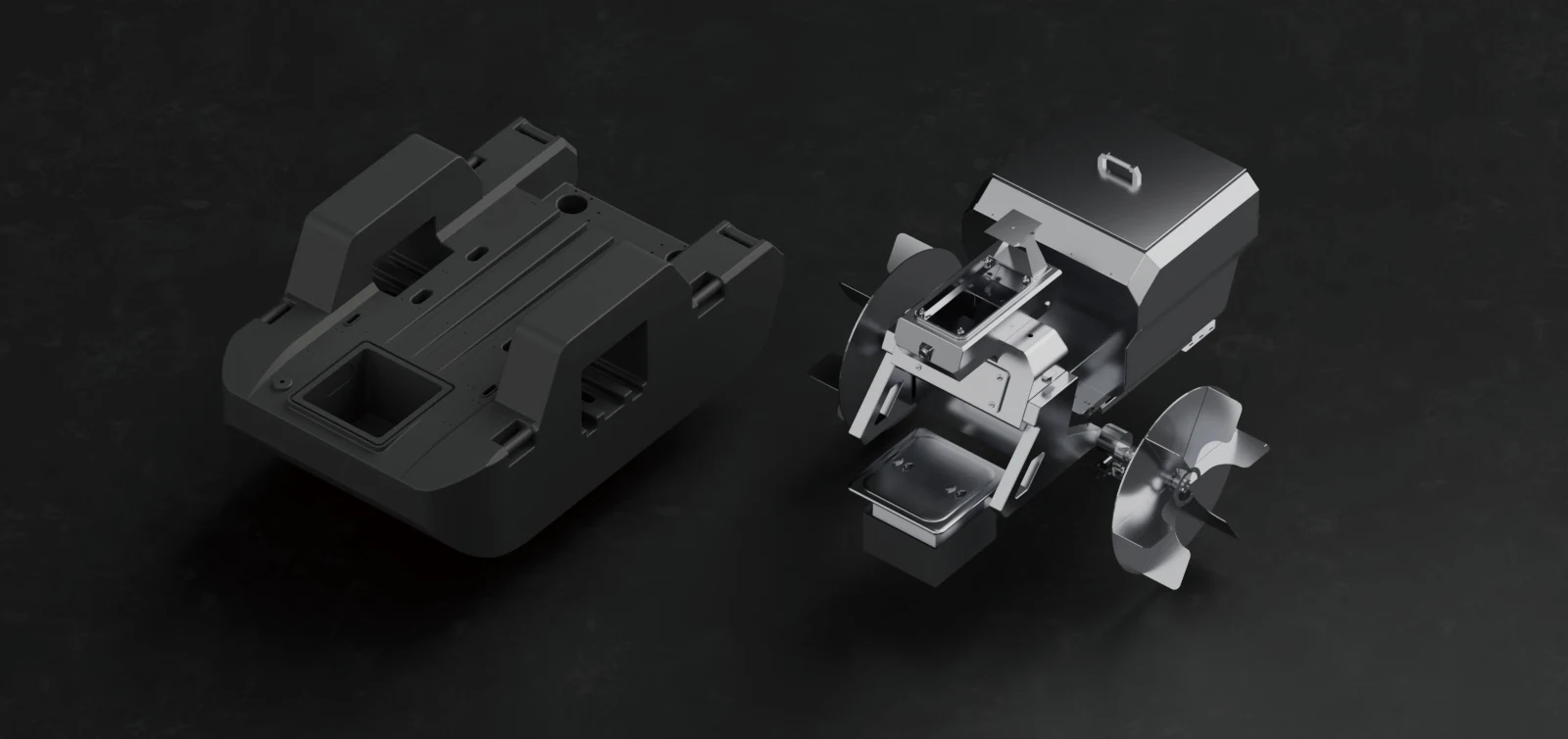

The brochure describes a waterproof housing and anti-entanglement design. This illustration does not identify a verified delivered thruster or prove resistance to all weeds. Specify standard 1 kW or optional 3 kW propulsion in the quotation.
Application scope
Survey and scanning
The manufacturer presents ORCALINK-X for survey and scanning. Define the required measurements, sensor package and data outputs before choosing the configuration.
Instrument-equipped surface missions
The large cabin and adjustable mounting structure are described for different mission instruments. Suitability for your exact monitoring or sampling hardware is unconfirmed, not inherited from Orcalink's option list.
Selection limits
Consider another platform if equipment exceeds the documented 100 kg equipment-only payload or cannot meet clearance, power, mounting, link and operating requirements. Confirm propulsion before comparing speed or endurance.
Documented vehicle equipment
Vehicle functions
Intelligent navigation, automatic/manual operation and an HD camera are listed as equipped. Actual hardware, software and communication package must be confirmed.
Mounting structure
The manufacturer describes adjustment without disassembly or tools and a large instrument compartment. This does not establish a verified installation of any third-party instrument.
Standard propulsion record
The table lists 2.5 m/s maximum at 1 kW. DC brushless thrusters are described with waterproof housing and anti-entanglement features, without a universal obstruction guarantee.
Optional equipment and integration
Higher-power propulsion
Optional 3 kW configuration is listed with a 4 m/s maximum speed. Confirm battery, propulsion equipment, endurance and final delivered configuration.
Mission instruments
Select the precise survey, monitoring or sampling devices and interfaces with the manufacturer. This X brochure does not provide a complete standard/optional instrument list.
Control and shipment scope
Confirm ground station, communication hardware, batteries, charger, mounting accessories and software. Pictured accessories and Orcalink's H30/cloud/options list are not automatic X-model inclusions.
Interfaces to confirm
Provide instrument model, dimensions, weight, center of gravity, mount, electrical load and data protocols. Tool-free adjustment and cabin capacity do not establish tested third-party compatibility; interface and integration evidence remains needed.
A brochure equipment reference is not a final delivery list. Specify each instrument, controller and accessory in the quotation.
Procurement record
Quotation and compliance
Aqua Robot Supply coordinates the selected configuration and order terms with the manufacturer. The following purchasing terms have not yet been confirmed for this model.
- MOQ / availability
- Not confirmed. Request model-specific order quantity and availability.
- Lead time
- Not confirmed. Agree after propulsion, instruments and configuration selection.
- Packaging / shipment
- Not confirmed. Specify vessel, battery, charger, controller, instruments and applicable shipping documents.
- Sample / evaluation unit
- Availability and terms not confirmed.
- Warranty / support
- Scope and terms not confirmed; request written terms in the quotation.
Model-applicable certificates
No model-applicable numbered certificate or validity record has been supplied. Request destination-market documents; brochure IP65 and battery-test descriptions are not verified certification proof.
Request a Quote
Discuss your equipment requirements
Share your task, site conditions and required tools for a model-specific quotation.
Selected model: ORCALINK-X
Preview only; this form does not send or store data. Contact us by email or WhatsApp.
Inquiry Privacy Notice

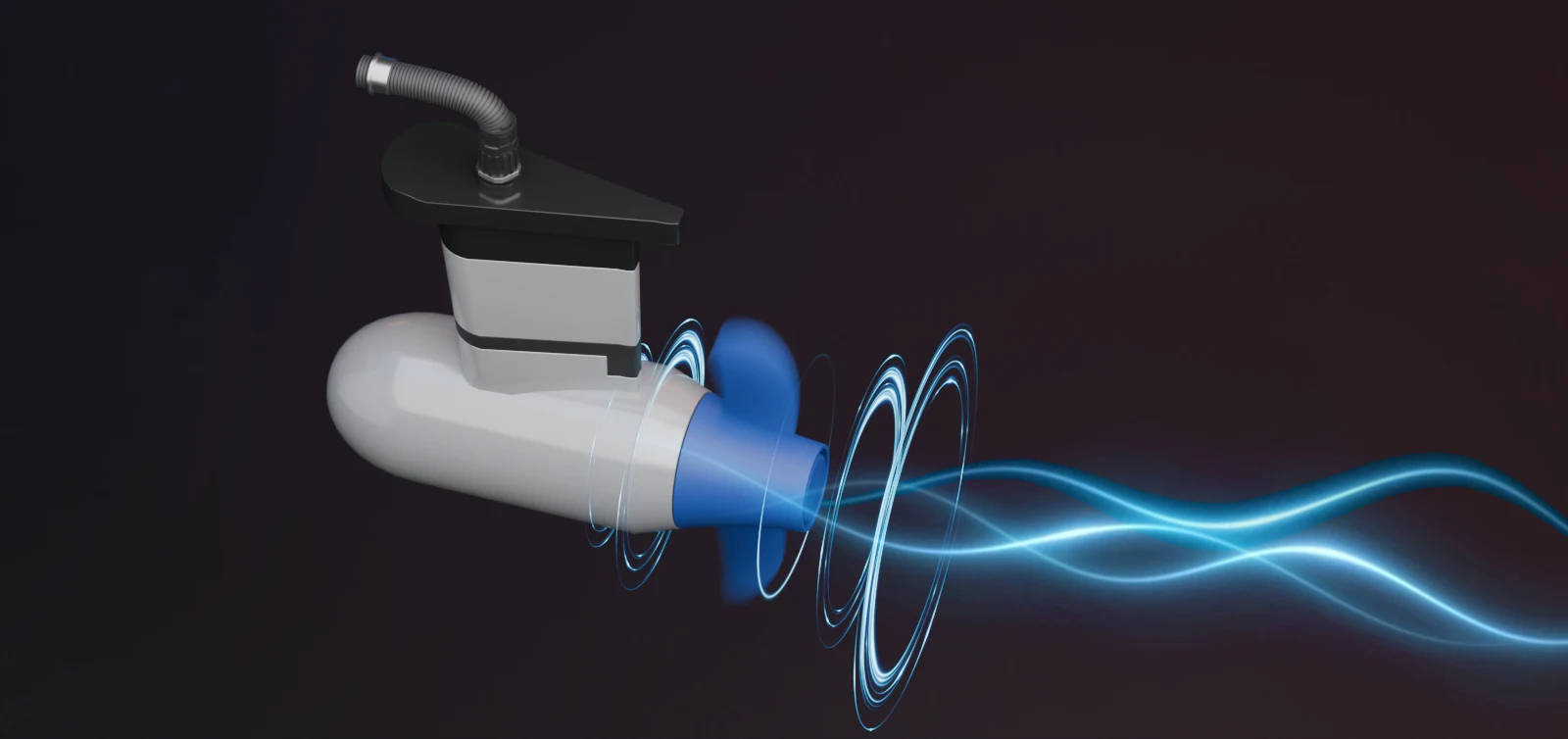

Specify the drive choice in your inquiry: standard 1 kW / 2.5 m/s maximum, or optional 3 kW / 4 m/s maximum. The concept graphic identifies neither a delivered component nor measured thrust, water flow, endurance or operating performance; final hardware and test conditions need confirmation.
