Aqua Helpers / Seeker
Seeker Survey USV
Seeker is Aqua Helpers' 4.5 m aluminum-alloy twin-hull USV, with dual moon pools and mounting rails for mission equipment. Aqua Robot Supply coordinates configuration and quotation for international survey and monitoring buyers.
- Manufacturer:
- Aqua Helpers
- Equipment supplier:
- Aqua Robot Supply
- Hull length
- 4.5 m / 14.8 ft
- Source payload
- 300 kg / 661 lb
- Mission mounts
- Dual moon pools
Manufacturer brochure references. Configuration, instruments and rating conditions are confirmed for your quotation; no immediate availability is implied.
Manufacturer reference
Model specifications
Read metric manufacturer figures alongside approximate imperial conversions. Published ratings do not establish performance under every site or payload condition.
Rating and load qualifications
- Manufacturer reference values; metric units are authoritative and imperial conversions are approximate. Installed payload, power demand and test conditions require project confirmation.
- The overview says Force 4; the detailed table separately states operational Sea State 3 and survival Sea State 4. These labels are not treated as equivalent or automatically converted to Beaufort.
- Light displacement and lightship weight are 1,300 kg; full-load displacement is 1,600 kg. The listed 300 kg payload is a separate load field, not vehicle weight.
- Private-network 15 nmi and nominal ground-to-air 30 km are different communication statements. Optional satellite links are not an unconditional unlimited-range guarantee.
Technical source: Aqua Helpers Seeker / 探索者 manufacturer brochure; supplied material. Ratings are not independently verified test results.
On small screens, values wrap within the table. Manufacturer metric values remain authoritative.
| Parameter | Brochure value and definition |
|---|---|
| Hull material / structure | Aluminum alloy; twin hull |
| Hull dimensions (L × W × H) | 4,500 × 2,300 × 1,800 mm / approx. 14.8 × 7.5 × 5.9 ft |
| Light displacement / lightship weight | 1,300 kg / approx. 2,866 lb Both manufacturer fields list this value; not payload. |
| Full-load displacement | 1,600 kg / approx. 3,527 lb |
| Payload capacity | 300 kg / approx. 661 lb Manufacturer-listed load; installed equipment and operating configuration to confirm. |
| Draft | 400 mm / approx. 15.7 in |
| Operational sea state | Sea State 3 |
| Survival sea state | Sea State 4 Survival does not establish normal mission operation. |
| Obstacle avoidance / navigation | Standard / standard Sensor package and operating limitations to confirm. |
| Control method | Smart handheld ground station |
| Mission mounting | Dual moon pools; rail-mounted payload system; deck units Dimensions, interfaces and instrument inclusion to confirm. |
| Private-network communication range | 15 nmi / approx. 27.8 km (17.3 mi) Source rating; actual surface link depends on site and installation. |
| Communication modes | Narrowband; dedicated network; public network; optional BeiDou / LEO satellite communication Available configuration, coverage and service terms to confirm. |
| Radio frequency / topology | 1,300–1,400 MHz; point-to-point / point-to-multipoint Destination-market radio permissions to confirm. |
| Communication operating temperature | −20 to 55 °C / −4 to 131 °F |
| Nominal coverage distance | 30 km / approx. 18.6 mi, ground-to-air line of sight Not a guaranteed surface-to-surface range. |
| Maximum speed | 15 kn / approx. 7.7 m/s (17.3 mph) |
| Endurance | 24 h Manufacturer figure; speed, payload and test conditions not specified. |
| Cruising speed | 4 kn / approx. 2.1 m/s (4.6 mph) |
| Propulsion | Electric propulsion with diesel-generator range extender |
| Fuel tank capacity | 50 L × 2 / approx. 13.2 US gal × 2 |
| Maximum range | 150 nmi / approx. 278 km (173 mi) Not promised simultaneously with maximum speed or all payload conditions. |
| Main-controller protection | IP67; ESD, lightning and surge protection at interfaces Controller rating, not a whole-vessel IP67 claim. |
| Controller operating temperature | −10 to 65 °C / 14 to 149 °F |
Task and integration scope
Applications and configuration
The Seeker brochure describes a marine hub coordinating control, interfaces and energy scheduling. This component view illustrates the integration subject, not verified third-party compatibility. Open the application and configuration records below for mission scope; confirm exact hardware, power, data and software requirements in the quotation.
Application scope
Channel and hydrographic survey
The manufacturer describes mapping missions using the moon pools and mounting rails. Define sonar geometry, positioning, data quality and installation requirements before selecting instruments.
Water-quality monitoring and research
For documented water-quality and scientific-observation tasks, confirm measurements, instrument power, sampling method and mission duration.
Patrol and emergency deployment
Manufacturer-listed applications only; the brochure does not establish verified rescue outcomes, legal patrol permissions or a supplier-operated case.
Selection limits
Assess launch and recovery arrangements for the 1,300 kg lightship platform, fuel handling, site access, sea state and communications. Do not select on the 300 kg load alone or use the survival rating as the permitted operating sea state. Hull and mission constraints must match the actual project.
Documented vehicle equipment
Twin-hull platform and mission mounts
Reinforced aluminum pontoons, box-girder bridge, watertight compartments, dual moon pools and rails are described. Final drawings and delivery list require confirmation.
Propulsion and control
Electric propulsion with a diesel-generator range extender; navigation and obstacle avoidance are listed as standard, with handheld ground-station control.

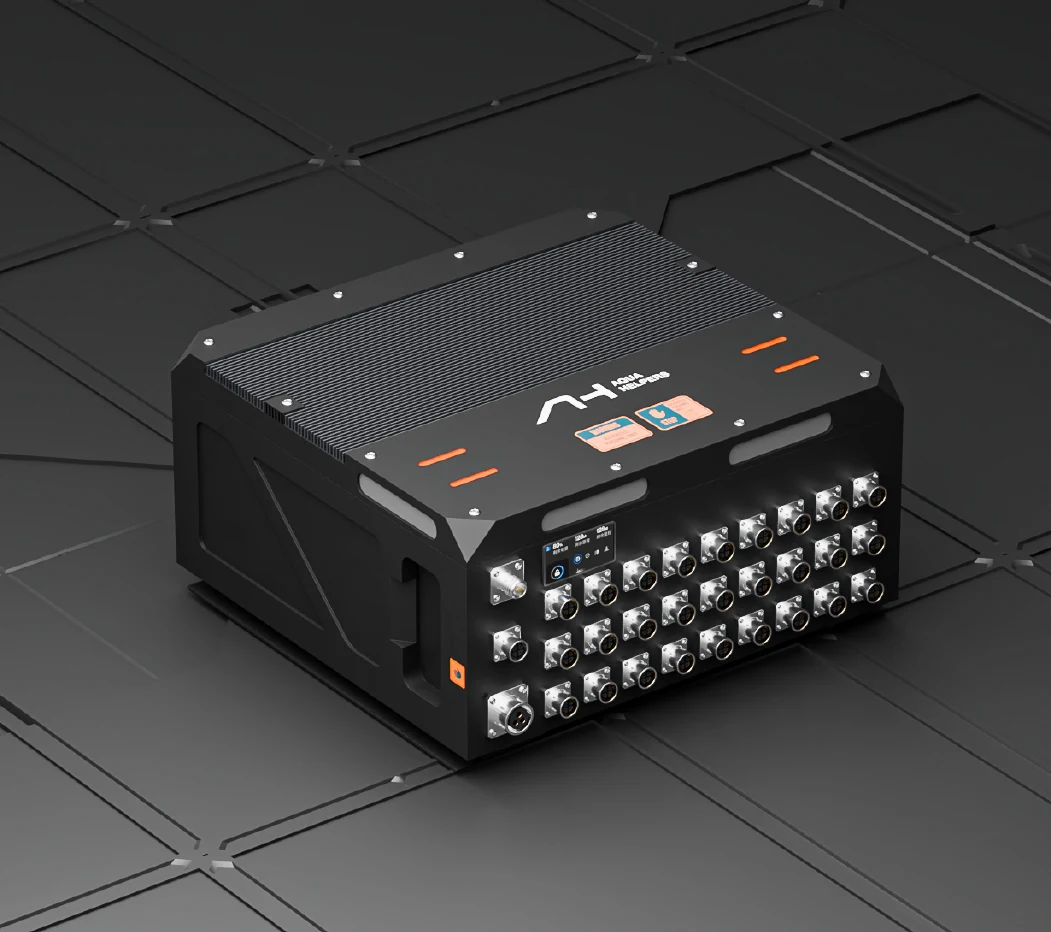

Manufacturer hub and mission software
The brochure describes a marine-grade hub, energy scheduling, remote monitoring, task dispatch, encrypted data and edge analytics. Confirm which hardware, software and licenses are included.
Optional equipment and integration
Mission instruments and mounting
Scientific equipment is configurable using the moon pools, rails and deck units. Survey, sampling and monitoring instruments must be itemized in the quotation; no universal sensor package is implied.
Satellite and network configuration
BeiDou and LEO satellite communication are optional. Confirm modem, antennas, regional coverage, service subscription, radio permissions and network configuration.
Interfaces to confirm
Provide instrument model, dimensions, wet weight, center of gravity, mounting footprint, power budget, data interface and required time synchronization. Dual moon pools and rails support integration planning but are not evidence that every third-party instrument has been tested. Exact interfaces and mechanical drawings remain to be confirmed.
A brochure equipment reference is not a final delivery list. Specify each instrument, controller and accessory in the quotation.
Procurement record
Quotation and compliance
Aqua Robot Supply coordinates the selected configuration and order terms with the manufacturer. The following purchasing terms have not yet been confirmed for this model.
- Minimum order / samples
- Not confirmed in the supplied material; discuss quantity and demonstration or sample availability.
- Lead time / delivery
- No committed delivery time or current stock confirmed. Destination and selected configuration are needed for quotation.
- Packaging / transport
- Packing dimensions, lifting points and shipping arrangements require confirmation; lightship weight is not shipping weight.
- Warranty / support
- Scope, duration and responsible parties remain to be agreed; no service guarantee is stated.
- Documents / delivery list
- Confirm final vehicle, controller, instruments, software and accessories. No public datasheet download URL is available yet.
Model-applicable certificates
The brochure's design-to-CCS/international-standards statement is not a verified model certificate. No applicable certificate number, scope or validity has been supplied. Confirm destination-market vessel and radio requirements before ordering.
