Pengpai Ocean / PX-F890

PX-F890 Underwater-Working AUV

Review Pengpai Ocean's PX-F890 for underwater inspection and task-dependent working configurations. Aqua Robot Supply coordinates selection and quotations. Choose 600 m or 1,200 m depth and confirm the camera, sonar and working-arm package; 60 kg is payload, not vehicle weight.

Manufacturer:: Pengpai Ocean
Equipment supplier:: Aqua Robot Supply

Depth options · select one: 600 / 1,200 m
Payload · not vehicle weight: 60 kg
Basic endurance · at 3 kn: ≥20 h

Pengpai Ocean PX-F890 yellow and white flat underwater vehicle with two working arms in its original manufacturer brochure render; extraction stripes remain in the background. — PX-F890 / RenderPengpai Ocean PX-F890 · Manufacturer render · Brochure extraction artifacts

Original manufacturer illustration, not real task photography, an Aqua Robot Supply project or a confirmed standard kit. Working arms and other pictured parts do not establish their inclusion. Background stripes and blocks are brochure-extraction artifacts.

Manufacturer brochure references. Configuration, instruments and rating conditions are confirmed for your quotation; no immediate availability is implied.

Manufacturer reference

Model specifications

Read metric manufacturer figures alongside approximate imperial conversions. Published ratings do not establish performance under every site or payload condition.

PX-F890 · Overall dimensional envelope

Length: 3000 mm
Width: 890 mm
Height: 400 mm

Manufacturer dimensions in millimetres. Rectangular envelope only, not the vehicle's body shape, mounting drawing or packed size.

Rating and load qualifications

Choose the 600 m or 1,200 m depth configuration. 600 kg is standard vehicle weight; 60 kg is payload. Metric figures are authoritative; conversions are approximate.
Only basic ≥20 h at 3 kn is used as a reference endurance rating. The brochure also lists extended '400 hours at 3 kn' and range '100-100Km'; these anomalous records require manufacturer clarification and are not advertised as established performance.
The 6–8-thruster/six-degree-of-freedom feature description and tail-propeller table wording require final-version confirmation. Working arms, cameras, sonar and auxiliary propulsion must be specified rather than inferred from the pictures.

Technical source: Pengpai Ocean English catalogue · Part 05, pages 15–18 · PX-F890 Underwater-Working AUV specification table and feature description.

On small screens, values wrap within the table. Manufacturer metric values remain authoritative.

Pengpai Ocean PX-F890 · Manufacturer specification record
Parameter	Brochure value and definition
Dimensions · length × width × height	3000 × 890 × 400 mm (approx. 9.84 ft × 35.04 in × 15.75 in) Configuration notes The source lists 890 mm width, 3 m length and 400 mm height, reordered here as length × width × height. Final tool-envelope, mounting and packed dimensions require confirmation.
Standard vehicle weight	600 kg (approx. 1,323 lb) Configuration notes Vehicle mass, not payload or packed shipping-system weight. Confirm the final arms, instruments, energy and handling configuration.
Payload	60 kg (approx. 132 lb) Configuration notes Separate payload record; exact usable budget and installed mission-equipment mass must be confirmed. Title's 60 kg means payload.
Working-depth configurations	600 m or 1,200 m (approx. 1,969 ft or 3,937 ft) Configuration notes Independent depth options, not a default 1,200 m rating for every version or simultaneous operation at both ratings.
Velocity range	0–4.5 kn (approx. 0–2.32 m/s) Configuration notes Manufacturer range, not rated current resistance. Basic endurance is recorded at 3 kn, not maximum speed.
Basic endurance at 3 kn	At least 20 h at 3 kn (approx. 1.54 m/s) Configuration notes Basic manufacturer configuration. Full battery, payload, depth, temperature and test conditions require confirmation.
Extended-energy record	Unconfirmed — not used for selection or comparison Configuration notes The source's extended-time and range records are anomalous; original wording is retained in the rating note below, not treated as established performance.
Propulsion and control — version to confirm	Feature text: 6–8 thrusters and six degrees of freedom; table: tail propeller with optional vertical auxiliary propulsion Configuration notes Final arrangement must be clarified; do not combine these descriptions into a confirmed standard supply. Vertical diving/ascent and dynamic positioning depend on the configured auxiliary system.
Navigation	INS + DVL + GNSS + USBL; table precision 0.3% of range Configuration notes Confirm hardware, calibration, mission distance and conditions. This is not fixed centimetre error or an unconditional guarantee. Do not borrow PX-900's conflicting feature figure.
Communications	UHF, Wi-Fi, 4G, satellite and underwater acoustic communication listed Configuration notes Confirm devices, services, range and surface/underwater link behavior; not arbitrary-depth wireless live video or unlimited coverage.
Control software and ground station	Manufacturer visual control interface and integrated ground station; secondary development and post-mission analysis described Configuration notes Licenses, versions, delivered station components and customized networking/data functions require agreement. Manufacturer software/support descriptions are not supplier development or service-time promises.
Inspection and working equipment	Camera system, imaging/side-scan sonar and two working arms described; grab, cut and rotate functions listed Configuration notes Task-specific equipment scope, not all standard. Confirm arm/tool ratings, interfaces, reach, object material and inspection requirements. No verified arbitrary underwater-repair result is established.
Expandable sensor scope	Underwater CCD, CTD, altimeter, obstacle-avoidance sonar, side-scan sonar, multibeam sonar, shallow-profile sonar, USBL and hydrophone Configuration notes Manufacturer integration candidates; actual equipment, mass, power, mounting, protocols and software must be checked. No universal third-party compatibility is confirmed.

Discuss this configuration

Task and integration scope

Applications and configuration

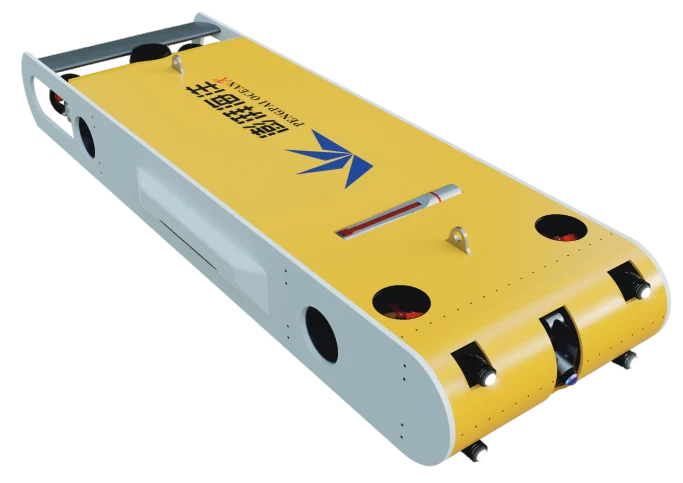

Alternate Pengpai Ocean PX-F890 manufacturer brochure render showing the flat yellow and white body without the extended working-arm view; background extraction artifacts remain. — Configuration / DetailPengpai Ocean PX-F890 · Alternate source view · Manufacturer render

The brochure shows different equipment views. Exploration and Operation labels remain configuration candidates within this model, not separate products. Agree the exact thruster arrangement, arms, cameras, sonar and tool interfaces; neither render is a verified delivery list.

Application scope

Offshore-wind inspection
The manufacturer lists offshore electrical operation and maintenance. Define the structure, depth, current, visibility, observation data and tool task before selecting equipment; no maintenance result or supplier service is implied.
Underwater structures and pipelines
Structural inspection/maintenance and pipeline tasks are described. Confirm camera/sonar arrangement and any arms, reach, interfaces and tool limits; the platform is not proven compatible with every structure or repair method.
Underwater search
Underwater search is a listed application. Agree navigation, detection payload, target requirements and recovery plan; no rescue outcome or mission-success guarantee is made.

Selection limits

Consider PX-F890 when observation and a defined working-tool task must be combined, subject to manufacturer configuration confirmation. A 600 kg vehicle requires an agreed lifting/deployment arrangement and is not a portable hand-launch device. For a cable-powered inspection system review the ROV family; for long-range seabed survey compare PX-900.

Documented vehicle equipment

Flat working platform
The manufacturer describes a wet-cabin frame and flat 600 kg vehicle with a 60 kg payload record. Depth and exact propulsion version require confirmation.
Navigation and mission control
The table describes INS/DVL/GNSS/USBL, visual control software and ground control. Confirm the actual devices, acceptance conditions and delivered station.
Inspection/operation concept
Camera, sonar and two-arm capabilities are manufacturer-described task scope. Exploration/Operation remain within this single model; exact equipment and functions belong in the quoted configuration.

Optional equipment and integration

Working arms and tools
Confirm whether arms and grab/cut/rotate tooling are included, their ratings, reach, power and interfaces. Brochure functions do not prove every material can be cut or every structure repaired.
Mission observation and measurement
Imaging/side-scan and survey sonars, cameras, CTD, altimeter, USBL and hydrophone are integration candidates. Agree instrument model, payload budget, power, mounting, protocols and outputs.
Auxiliary propulsion
Vertical auxiliary propulsion is optional in the table. Confirm the final 6–8-thruster/degree-of-freedom arrangement and the conditions for vertical movement and dynamic positioning.
Energy, communications and software
Select depth and energy scope without relying on anomalous extended records. Agree surface/satellite/acoustic equipment, services, software version, licenses and customization.

Interfaces to confirm

Provide the inspection target, task, instrument/tool model, mass, size, mounting, reach, voltage/power, connectors, protocols and required data. No third-party integration tests, working-arm acceptance data or confirmed deployment interface have been supplied. Confirm handling, navigation, visibility/current limits and energy conditions in the quotation.

A brochure equipment reference is not a final delivery list. Specify each instrument, controller and accessory in the quotation.

Procurement record

Quotation and compliance

Aqua Robot Supply coordinates the selected configuration and order terms with the manufacturer. The following purchasing terms have not yet been confirmed for this model.

Delivery scope: Depth, energy, propulsion version, navigation, tools/arms, cameras/sonar, communications and control equipment to be agreed in a written quotation.
MOQ and samples: Minimum order and sample availability have not been confirmed.
Lead time and packaging: Production lead time, export packing, packed system mass and shipment arrangements have not been confirmed.
Warranty and support: Warranty, training, software maintenance and support responsibilities require project-specific confirmation; no service-time promise is made.

Model-applicable certificates

No applicable PX-F890 model certificate, certificate number, scope or validity has been supplied. Manufacturer company credentials do not establish vehicle/tool compliance or approved maintenance capability for your market.
