Pengpai Ocean / PX-MiniROV
PX-MiniROV Portable ROV
PX-MiniROV is Pengpai Ocean's 3.2 kg tethered observation platform, with consumer and professional configurations and a listed working depth of 0–100 m. Aqua Robot Supply coordinates equipment selection and quotations for international project buyers.
- Manufacturer:
- Pengpai Ocean
- Equipment supplier:
- Aqua Robot Supply
- Working depth
- 0–100 m
- Vehicle weight
- 3.2 kg
- Control cable
- 100 m
Manufacturer photograph, not an Aqua Robot Supply project. The pictured reel, cameras and accessories do not establish the standard delivery list; consumer and professional equipment differ.
Manufacturer brochure references. Configuration, instruments and rating conditions are confirmed for your quotation; no immediate availability is implied.
Manufacturer reference
Model specifications
Read metric manufacturer figures alongside approximate imperial conversions. Published ratings do not establish performance under every site or payload condition.
PX-MiniROV · Plan envelope / L × W
- Length
- 420 mm
- Width
- 220 mm
- Height
- 100 mm
Overall dimensional envelope
Manufacturer dimensions in millimetres. Rectangular envelope only, not the vehicle's body shape, mounting drawing or packed size.
Rating and load qualifications
- The 100 m working-depth range and 100 m cable are independent constraints. Account for the cable path, tether drag, obstructions and recovery arrangements.
- Maximum 3.5 h battery life is tied to the listed 200 Wh battery, with test conditions unprovided. Charging takes a separately listed 1.5 h; maximum speed and battery life are not simultaneous guarantees.
- Consumer and professional versions share one product page. Professional sonar, external camera, fiber cable and water-quality instruments must be specified; the same source photograph does not prove which package is supplied.
Technical source: Pengpai Ocean English catalogue, Part 06 (pages 19–24), PX-MiniROV section and specification table. Manufacturer brochure, not independent test evidence.
On small screens, values wrap within the table. Manufacturer metric values remain authoritative.
| Parameter | Brochure value and definition |
|---|---|
| Overall dimensions | 420 × 220 × 100 mm (approx. 16.5 × 8.7 × 3.9 in) Manufacturer physical-size record; packed dimensions are not supplied. |
| Vehicle weight | 3.2 kg (approx. 7.1 lb) Vehicle weight, not payload. The brochure does not specify a payload capacity or battery-weight basis. |
| Working depth | 0–100 m (0–328 ft) Manufacturer working-depth range; separate from control-cable length. |
| Velocity range | 0–4 kn (approx. 0–2.06 m/s; 0–4.60 mph) Vehicle speed, not a verified current-resistance rating. |
| Propulsion and control | 3 thrusters; automatic depth and navigation functions Confirm control functions for the chosen consumer or professional version. |
| Battery energy | 200 Wh lithium battery Manufacturer battery record. A high-endurance configuration is optional. |
| Maximum battery life | 3.5 h maximum Complete test conditions are not supplied; speed, lighting and sensor use affect operating duration. |
| Charging time | 1.5 h Charging duration, not operating endurance; confirm supplied charger and local power requirements. |
| Camera system | 12 MP photos; 4K/30 fps or 1080p/60 fps video; 120° viewing angle Manufacturer camera-table record. External professional camera equipment is a separate configuration choice. |
| Control interface | Phone/tablet application for iOS or Android; Wi-Fi connection Wi-Fi links the surface control device. Underwater operation remains tethered, not wireless underwater Wi-Fi. |
| Control-cable length | 100 m (approx. 328 ft) Cable length is not a guaranteed horizontal radius or simultaneous depth and offset. |
| Cable construction | Zero-buoyancy cable with Kevlar reinforcement; tensile resistance listed as 80 kg Manufacturer wording, not a verified safe working load or permission to lift the vehicle by its cable. Professional fiber-optic cable is configuration-dependent. |
| Sensor and detection records | 9-axis attitude, depth and temperature sensors; temperature, pressure and leakage detection Listed in expandable sensor scope; exact installed package must be confirmed. |
| Professional sensing scope | Forward-looking sonar; externally mounted 4K camera; pH, salinity, turbidity and other water-quality sensors Professional/configuration-dependent, not default consumer equipment. The source names Tritech Micron sonar and GoPro HERO 6. |
| Transport and reel | Integrated reel-winch transport arrangement; optional special reel winch Confirm reel type, tether and packing scope. The brochure photograph is not a final supply bill. |
Task and integration scope
Applications and configuration

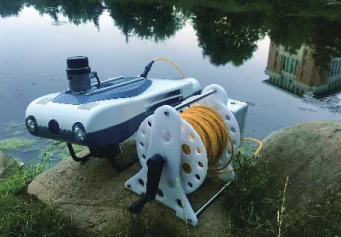

The reel illustrates the manufacturer's cable/transport arrangement. It is another crop of the opening scene, not a new deployment or a confirmed standard kit. Specify version, cable and reel in the quotation.
Application scope
Underwater visual observation
The manufacturer lists filming, observation and exploration. Define the subject, visibility, required image record and working depth before selecting a camera configuration.
Teaching and demonstrations
Teaching demonstrations are a listed application. Confirm the control-device requirements, operating area and supervision arrangements.
Environmental monitoring
Marine environmental monitoring is a listed use, with professional water-quality sensor choices. Measurement accuracy, logging and interfaces require model-specific confirmation.
Selection limits
This is a portable observation platform, not a documented replacement for the heavier tool-carrying PX-050ROV or PX-100ROV. No manipulator payload, quantified anti-current capability or net-cleaning function is established. Confirm visibility, current, tether access and recovery at the site.
Documented vehicle equipment
Portable tethered platform
The brochure documents a 3.2 kg vehicle, three thrusters and consumer/professional versions. No payload capacity is stated.
Imaging, lighting and battery
HD cameras, searchlights and a 200 Wh lithium battery are documented. The quotation must identify the exact installed camera, lighting, battery and charger.
Control and transport
Phone/tablet control and an integrated cable-reel transport arrangement are described. Confirm app/device compatibility and each supplied control and cable item.
Optional equipment and integration
Professional observation equipment
Forward-looking sonar and an externally mounted 4K camera are professional choices. The source names Tritech Micron and GoPro HERO 6; substituted models need separate interface confirmation.
Professional sensors and fiber cable
pH, salinity, turbidity and other water-quality sensors, and a zero-buoyancy fiber-optic cable, are configuration-dependent. They are not default consumer inclusions.
Endurance and reel options
A high-endurance type and special reel winch are optional. Their battery capacity, duration, cable and charging specifications are not provided in the base table.
Interfaces to confirm
Specify the consumer or professional version, control-device model, operating system, installed camera/sonar and every sensor. Confirm connectors, power, data format, software support and cable/reel scope with Pengpai Ocean. No verified universal third-party compatibility report has been supplied.
A brochure equipment reference is not a final delivery list. Specify each instrument, controller and accessory in the quotation.
Procurement record
Quotation and compliance
Aqua Robot Supply coordinates the selected configuration and order terms with the manufacturer. The following purchasing terms have not yet been confirmed for this model.
- MOQ / sample
- Minimum order and demonstration or sample availability are not confirmed; request model-specific terms.
- Lead time / delivery
- Version, accessory availability, destination and shipping terms must be agreed for the quoted configuration.
- Packaging / handling
- Case dimensions, shipping weight, cable reel and lithium-battery transport arrangements require confirmation.
- Warranty / support
- Warranty, app support, training and spare-parts scope are not confirmed supplier commitments.
Model-applicable certificates
No verified PX-MiniROV certificate, certificate number, scope or validity has been supplied. Request documentation for the chosen version, battery and destination; manufacturer company credentials are not model approval.
